Specifications

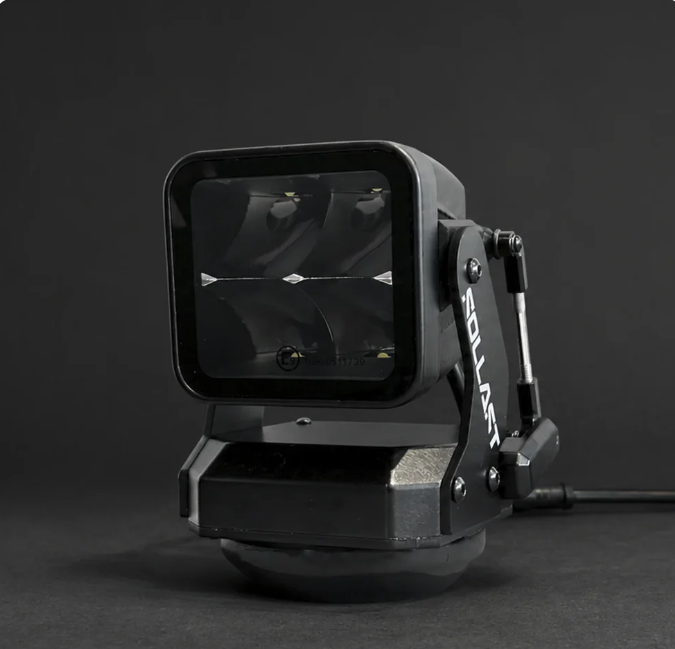

Light

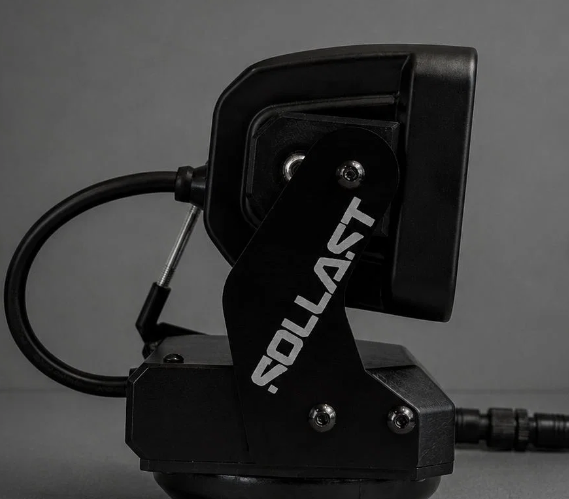

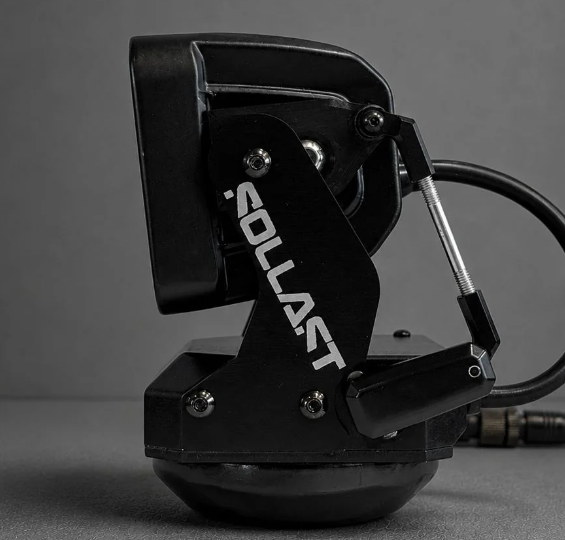

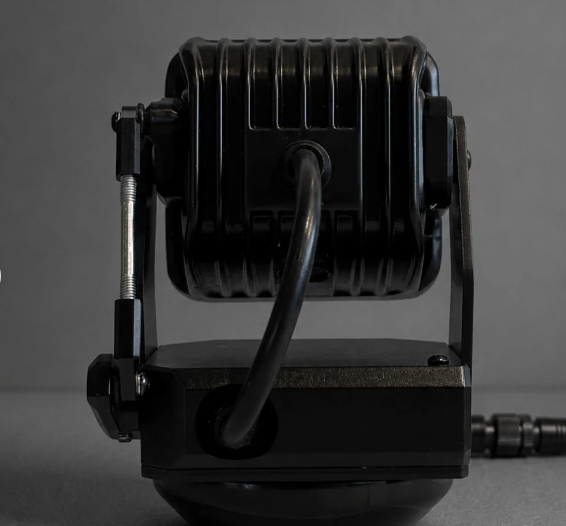

Rotating Assembly
What’s in the box
Rotation + on/off control from the driver’s seat
Fused loom with plug-and-play connectors
Stainless hardware for flat and cowl mounting
Vibration dampening for the base plate
Hex keys for all supplied fasteners
Install, wiring and operation guide
Dimensions & Movement

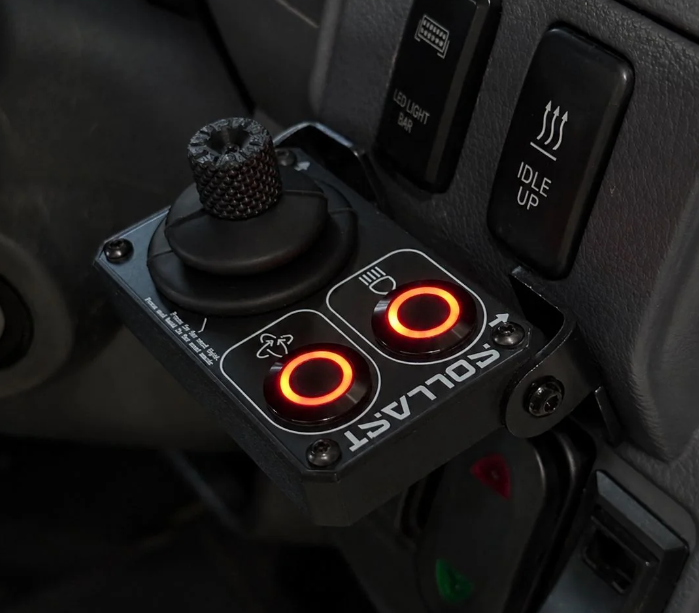

Controller
Slim line joystick pan/tilt control with dedicated system and light buttons
Specs
Modes
The SOLLAST controller is easy to use with an intuitive joystick and 2 simple modes.
Gives you 360 continuous rotation and 90 degrees of tilt. If you have multiple lights connected, briefly push the joystick down to cycle through each light individually before controlling them all again.
To change modes, hold the system button for 2 seconds to switch modes. The red LED lights will flash twice to indicate the mode has been changed.
Gives you proportional control around the preset position. All lights connected to the controller will complete a short homing sequence before returning to their adjustable preset positions. Once this short homing sequence has completed, moving the joystick will proportionally move all connected lights before returning to centre when the joystick is released. To adjust the preset position of each light, briefly press the joystick down to select and slowly move each individual light into the desired position.
Special Functions
Invert Controls: Hold the system button and joystick down for 10 seconds to invert the pan and tilt controls for inverted mounting applications. Repeat the same steps to revert back.
Disable Auto Sleep: Hold the light button and joystick down for 10 seconds to disable auto sleep mode. In this mode the pan and tilt motors will continue to firmly hold the light’s position even when there is no joystick input. Repeat the same steps to revert back.
Wiring & Installation
Plug-and-play harness with battery lead, in-cab controller and water proof connectors.
Pair wiring — 15A fuse, dual 200mm leads to shared controller
40W Remotely operated rotating lights in the field
Mounts anywhere with a standard bolt hole.
